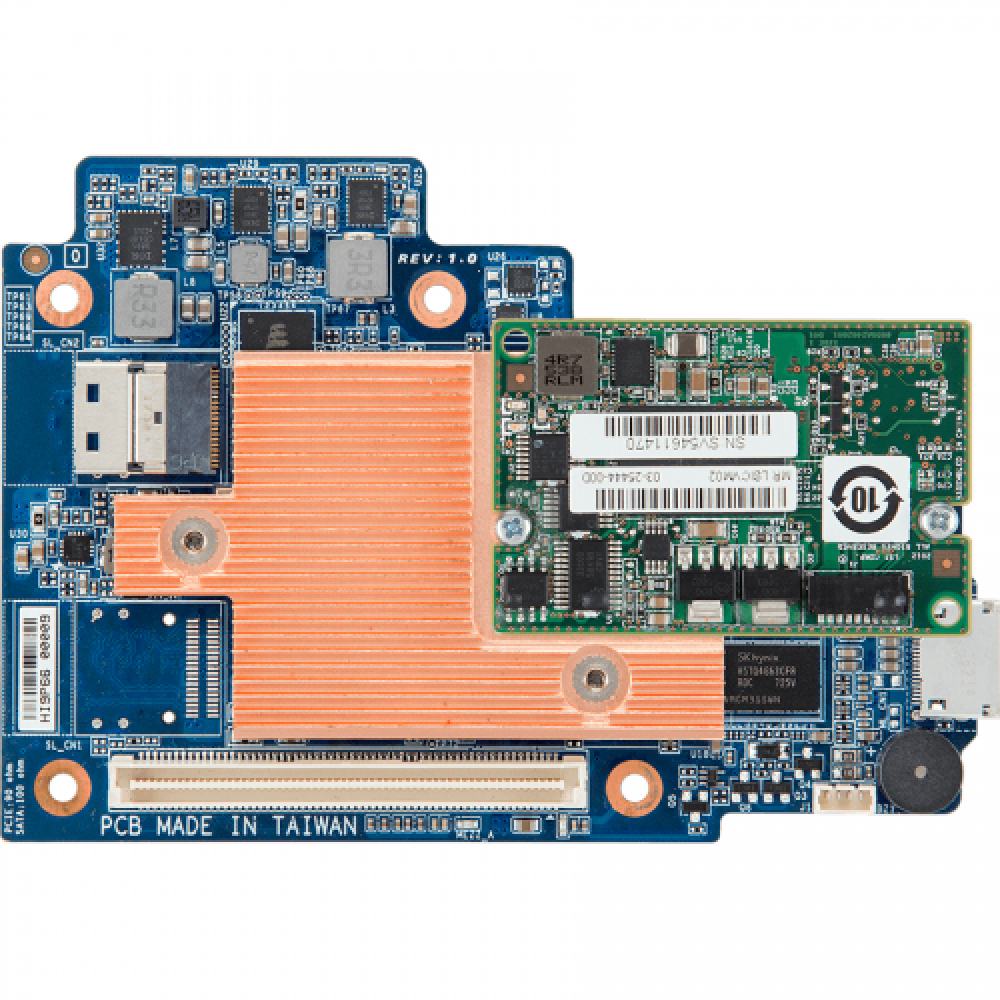

Broadcom SAS3108 OCP type hardware RAID Card (240-PD),1 x Internal SlimSAS port, up to 4 x SAS 12Gb/s ports,1 x External OCuLink port for JBOD, Up to 240 x physical devices supported via SAS expander, Broadcom SAS3108, Hardware RAID 0/1/5/6/10/50/60, 2GB DDR3 1866 cache memory, PCIe 3.0 x8 bus, (Optional) CacheVault Flash Cache Protection Module,OCP Form Factor (Type1)
General
| Altele | Format OCP mezzanine (Type1) |
| Caracteristici | RAID 0/1/5/6/10/50/60 2GB DDR3 cache memory Compatibil cu Broadcom CacheVault Flash Cache Protection Până la 240 x dispozitive fizice acceptate prin expander Suportă hard disk-uri SAS / Enterprise SATA |
| Chipset | Broadcom SAS3108 |
| Conectori | 1x internal SlimSAS 4x SAS 12Gb/s 1x external OCuLink port pentru JBOD |
| Dimensiune | 110.85 x 78 mm |
| Interfata | PCI Express x8 Gen3 |
| S.O. Compatibile | Windows Server 2012 64bit, Windows Server 2008 R2 64bit, Windows 8.1 64bit, Windows 10 64bit, Windows Server 2016 64bit, VMware 6.0 U1, VMware 6.0 U2, Linux, FreeBSD |
| Tip | Adaptor |
| Viteza de transfer | 12Gb/s |
