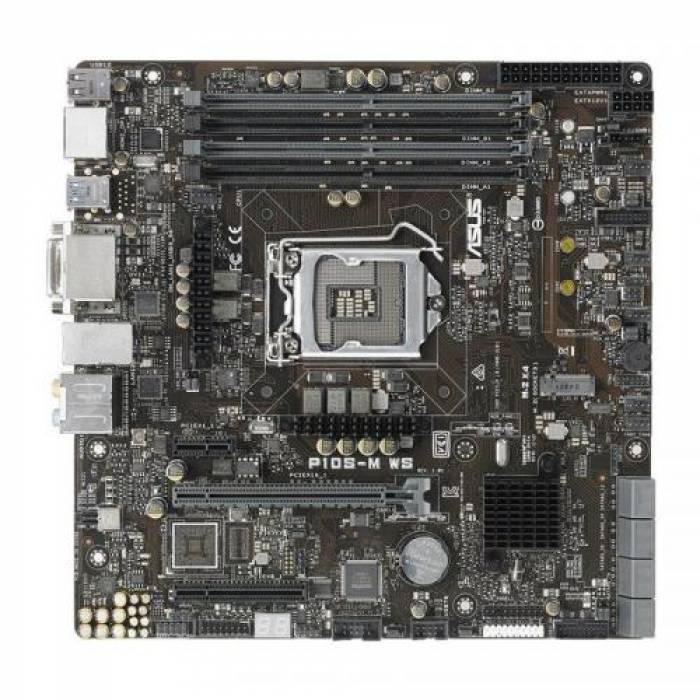

Intel C236 | LGA1151 | MicroATX | 1xPCI-Express 3.0 1x | 1xPCI-Express 3.0 8x | 1xPCI-Express 3.0 16x | 1xM.2 | DDR4 | 2133 MHz | Memory slots 4 | 1xDVI | 1xHDMI | 1xDisplayPort | 2xUSB 2.0 | 2xUSB 3.0 | 1xOptical S/PDIF | 2xRJ45 | 6xAudio port | USB 2.0 | USB 3.0 | Serial | SATA 3.0 | Video | LAN Gigabit | Audio Realtek ALC1150 | RAID SATA 0, 1, 5, 10
Caracteristici
Audio integrat | Realtek ALC1150 7.1-channel HD Audio |
Controler SATA | C236 |
Retea integrat | 2 x Intel I210AT |
SATA-III | 8 x SATA3 6Gb/s ports sau 7 x SATA 6Gb/s cu 1 x M.2 (SATA 6Gb/s & PCI-E Gen3 x4 link, NGFF 22110/2280/2260/2242) |
Suport M.2 | 1x M.2 NGFF 22110/2280/2260/2242 |
Suport RAID SATA | 0, 1, 5, 10 |
Video integrat | Necesita procesor |
Chipset
Model | C236 |
Producator | Intel |
Conectori Back Panel
Audio | 6 |
Conectori speciali | 1x USB BIOS Flashback switch |
DisplayPort | 1 |
DVI | 1 |
HDMI | 1 |
Optical S/PDIF | 1 |
RJ-45 | 2 |
USB 2.0 | 2 |
USB 3.0 | 2 |
General
Format | mATX |
Procesoare suportate | Intel Xeon Seria E3-1200 v5/E3-1200 v6 Intel Core i3/i5/i7 generatia 6/7 Intel Pentium Intel Celeron |
Single Socket | Da |
Socket | 1151 |
Memorii Suportate
DIMM | UDIMM |
Frecvente suportate | 2400 /2133 MHz |
Memorie maxima | 64 GB |
Numar sloturi | 4 |
Tehnologie | Dual Channel |
Tip memorie | ECC, non-ECC |
Tip RAM | DRR4 |
Sloturi
PCI Express 3.0 x1 | 1 |
PCI Express 3.0 x16 | 1 |
PCI Express 3.0 x8 | 1 |
