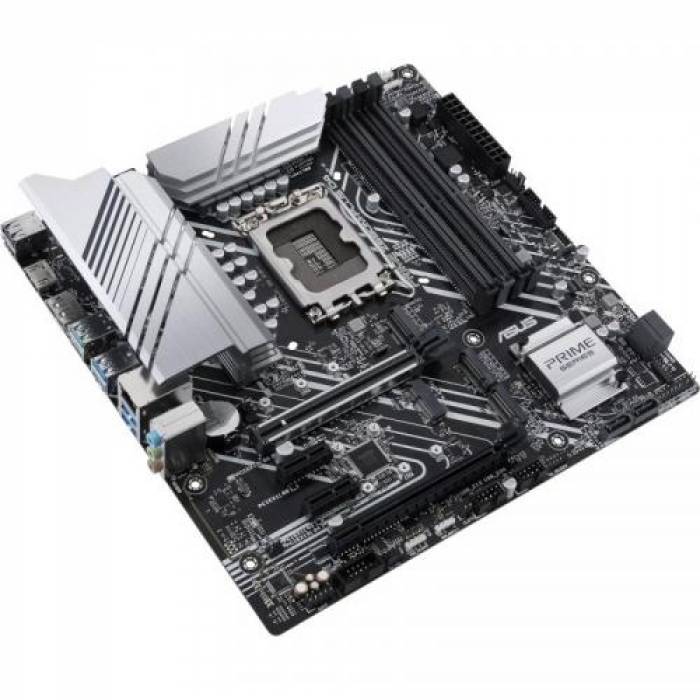

Placa de baza ASUS PRIME Z690M-PLUS D4, Intel Z690, socket 1700, mATX
Conectivitate
| Audio jacks | 3 |
| BIOS Flashback | Da |
| DisplayPort | 1 |
| HDMI | 1 |
| Iesire optica S/PDIF | 1 |
| RJ-45 | 1 |
| Suport audio | 5.1 |
| USB 2.0 | 2 |
| USB 3.2 Gen1 tip A | 4 |
| USB 3.2 Gen2 tip A | 1 |
| USB tip C | 1 x USB 3.2 Gen 2x2 tip C |
General
| Chipset audio | Realtek |
| Chipset retea | Realtek |
| Interfata grafica | PCI Express x16 5.0 |
| NGFF (M.2) | 3 |
| Placa audio integrata | 5.1 Audio with Realtek |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | Z690 |
| CPU Socket | 1700 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Producator chipset | Intel |
Sloturi
| PCI Express 3.0 | 1 (x16) |
| PCI Express 5.0 | 1 |
| PCI Express x1 | 2 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 24.4 x 24.4 cm |
| Format | mATX |
