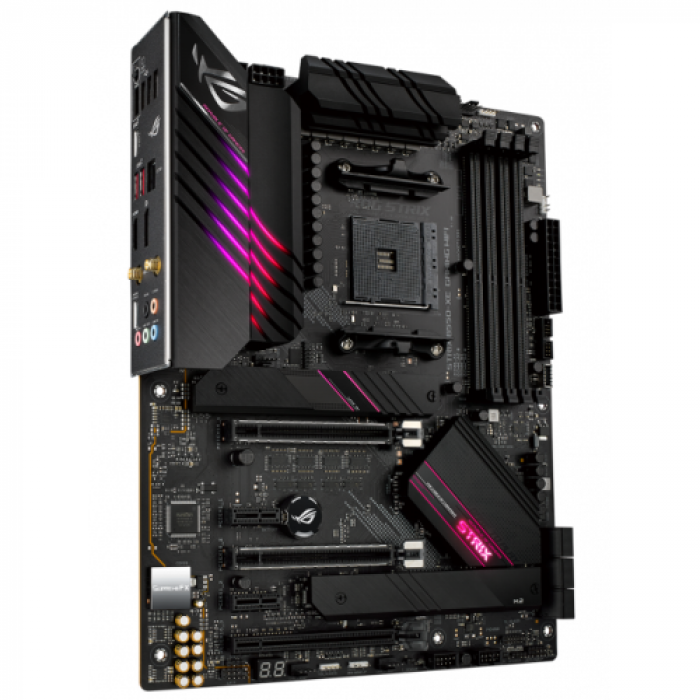

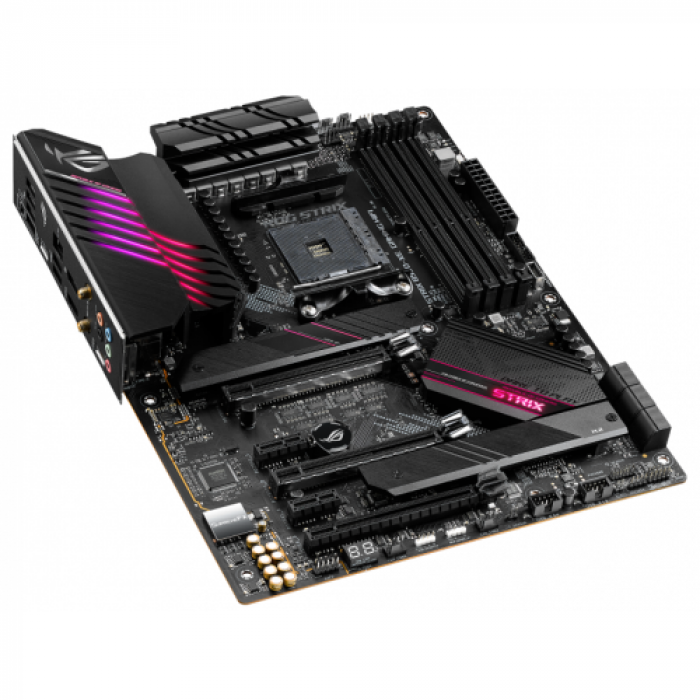

MB AMD B550 SAM4 ATX/ROGSTRIX B550-XE GAM WIFI ASUS AU_ROGSTRIX B550-XE GAM WIFI
Conectivitate
| Audio jacks | 5 |
| Bluetooth | 5.1 |
| Conectori speciali | 1x BIOS Flashback Button |
| DisplayPort | 1 |
| HDMI | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 5 (1 pentru audio USB Type-C) |
| USB 3.1 tip A | 2 |
| USB 3.1 tip C | 1 |
| Wireless | Intel Wi-Fi 6 AX200 802.11 a/b/g/n/ac/ax |
General
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset audio | ROG SupremeFX S1220A |
| Chipset retea | Intel I225-V |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 2x M.2 (2242/2260/2280/22110) |
| Placa audio integrata | 7.1 Audio with ROG SupremeFX S1220A |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| RAID | 0, 1, 10 |
| Recomandat Gaming | Da |
| SATA III | 6 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | B550 |
| CPU Socket | AM4 |
| Procesoare suportate | AMD AM4 Socket Ryzen 5000 Series/ AMD Ryzen 3000 Series AMD Ryzen 4000 G-Series |
| Producator chipset | AMD |
Sloturi
| Multi-GPU CrossfireX | Suporta AMD 3-Way CrossFireX |
| Multi-GPU SLI | Suporta NVIDIA 2-Way SLI |
| PCI Express 3.0 | 1 (x4) |
| PCI Express 4.0 | 2 (x16 / x0 , x8 / x8) |
| PCI Express x1 | 2 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Format | ATX |
