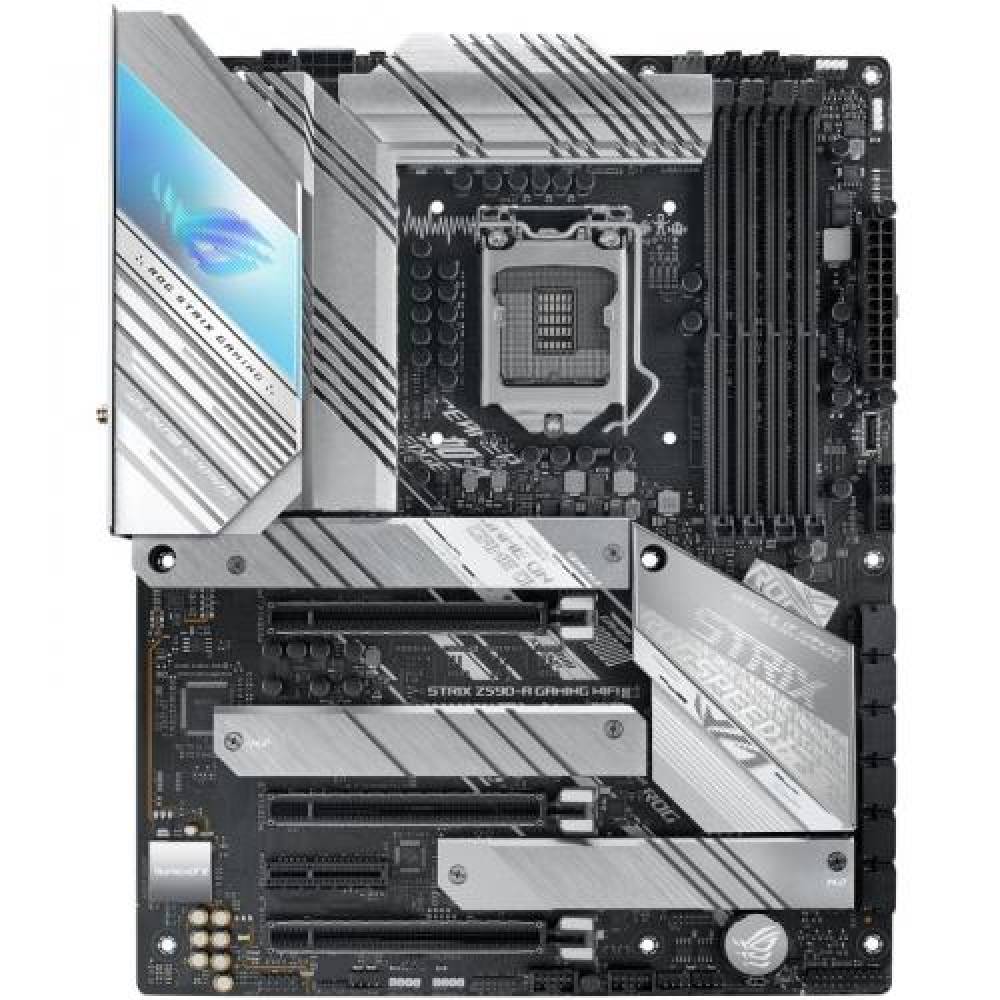

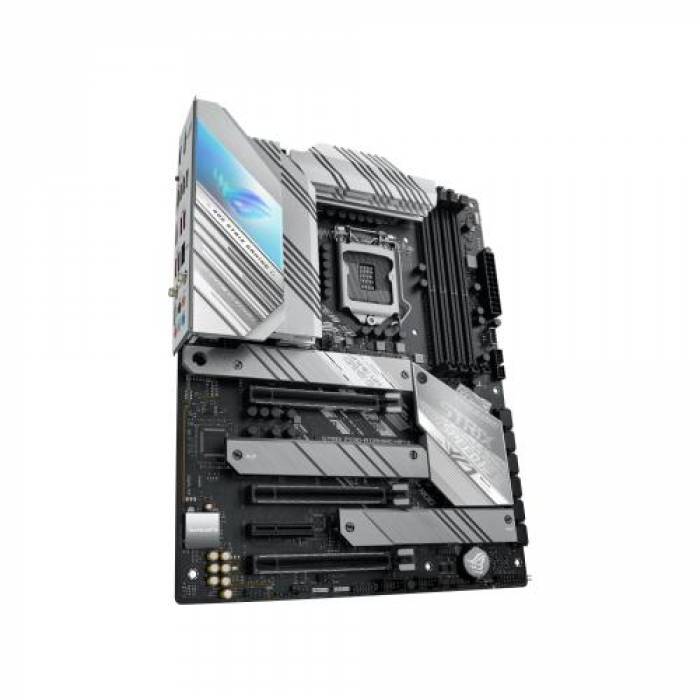

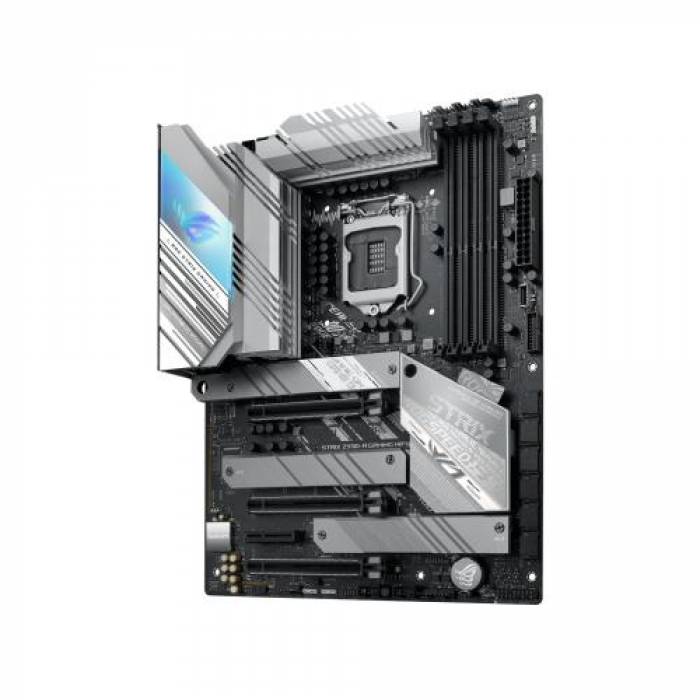

ASUS ROG STRIX Z590-A GAMING WIFI LGA1200 ATX motherboard ROG STRIX Z590-A GAMING WIFI
Conectivitate
| Altele | 1 x BIOS FlashBack button |
| Audio jacks | 5 |
| Bluetooth | 5.0 |
| DisplayPort | 1 |
| HDMI | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 4 |
| USB 3.2 Gen1 tip A | 1 |
| USB 3.2 Gen2 tip A | 4 |
| USB tip C | 1x USB Type-C 3.2 Gen 2x2 1 x audio USB Type-C |
| Wireless | 1 x ASUS Wi-Fi Module Intel 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
General
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset audio | ROG SupremeFX ALC4080 |
| Chipset retea | Intel I225-V 2.5Gbps LAN |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 3x M.2 (2242/2260/2280/22110) |
| Placa audio integrata | 7.1 Audio with ROG SupremeFX ALC4080 |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 6 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | Z590 |
| CPU Socket | 1200 |
| Procesoare suportate | Intel Core i5/i7/i9 din a unsprezecea generatie Intel Core Pentium/Celeron/i5/i7/i9 din a zecea generatie |
| Producator chipset | Intel |
Sloturi
| Header USB 3.0 | 1x USB 3.2 Gen 1 |
| PCI Express 3.0 | 1 (x4) |
| PCI Express 4.0 | 3 (x16, x8 / x4 / x4) |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Format | ATX |
