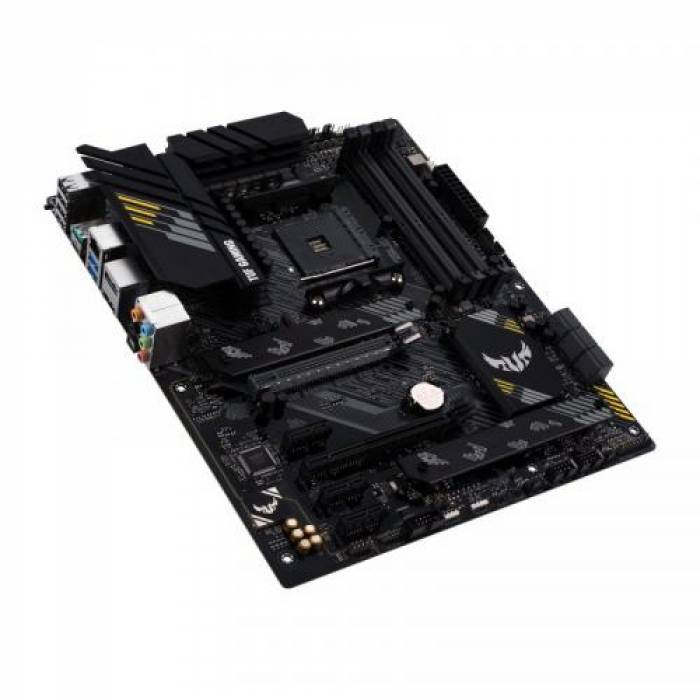

Placa de baza Asus TUF GAMING B550-PRO AM4 AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 14 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, Front USB Type-C®, USB 3.2 Gen 2 Type-A and Type-C®, and Aura Sync RGB lighting support AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series desktop processors Enhanced power solution: 12+2 DrMOS power stages, 8+4 pin ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability Comprehensive cooling: VRM heatsink, PCH fanless heatsink,dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility Next-gen connectivity: PCIe 4.0 M.2,Front USB Type-C®, USB 3.2 Gen 2 Type-A and Type-C® support Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in Two-Way AI Noise Cancelation: Provides crystal-clear in-game voice communication
| Conectori speciali | 1x BIOS Flashback Button |
| DisplayPort | 1 |
| HDMI | 1 |
| Iesire optica S/PDIF | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 4 |
| USB 3.0 | 2 |
| USB 3.1 tip A | 1 |
| USB 3.1 tip C | 1 |
| Chipset audio | Realtek S1200A |
| Chipset retea | Realtek RTL8125B 2.5GbE |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 2 |
| Placa audio integrata | 7.1 Audio with Realtek S1200A |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| RAID | 0, 1, 10 |
| Recomandat Gaming | Da |
| SATA III | 6 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
| Chipset | B550 |
| CPU Socket | AM4 |
| Procesoare suportate | AMD AM4 Socket Ryzen™ 3000/5000 Series Nu este compatibila cu AMD Ryzen 5 3400G și Ryzen 3 3200G |
| Producator chipset | AMD |
| Multi-GPU CrossfireX | Supports AMD 2-Way CrossFireX™ Technology |
| PCI Express 3.0 | 1 (x4) |
| PCI Express 4.0 | 1 (x16) |
| PCI Express x1 | 3 |
| Format | ATX |
