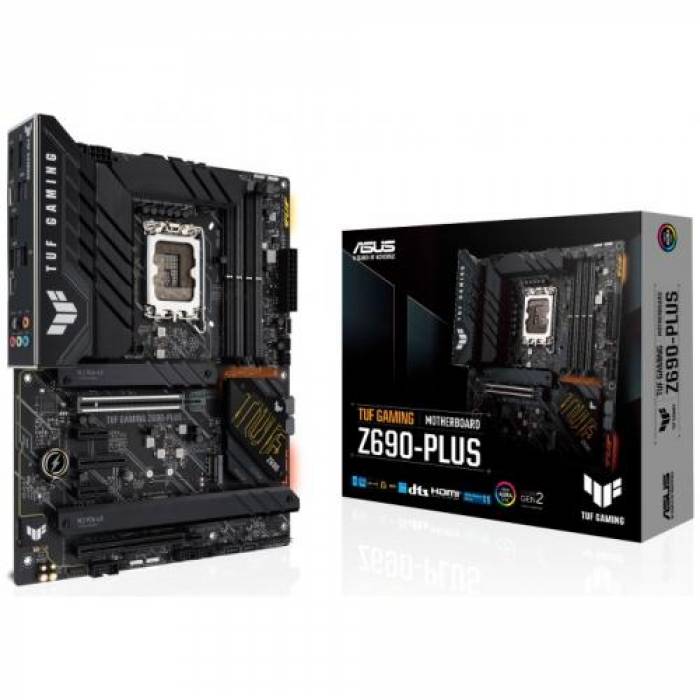

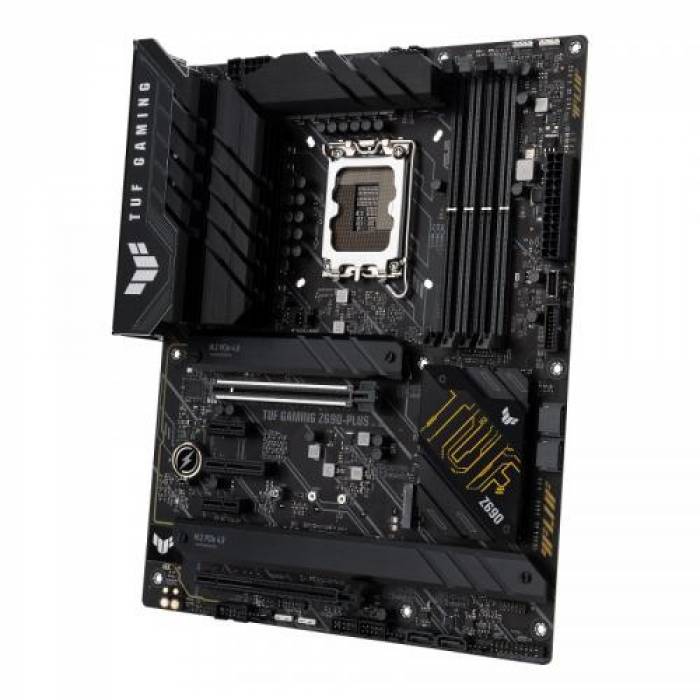

ASUS TUF GAMING Z690-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2,Micro SATA III,NVMe,PCI Express 4.0, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Conectivitate
| Audio jacks | 5 |
| DisplayPort | 1 |
| HDMI | 1 |
| Iesire optica S/PDIF | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 3.2 Gen1 tip A | 4 |
| USB 3.2 Gen2 tip A | 2 |
| USB tip C | 1 x USB 3.2 Gen 2x2 tip C 1 x USB 3.2 Gen 1 tip C |
General
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Chipset audio | Realtek |
| Chipset retea | Intel 2.5GbE LAN |
| Interfata grafica | PCI Express x16 5.0 |
| NGFF (M.2) | 4 |
| Placa audio integrata | 7.1 Audio with Realtek |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz |
| Model memorie | DDR5 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | Z690 |
| CPU Socket | 1700 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Producator chipset | Intel |
Sloturi
| PCI Express 3.0 | 2 (x4) |
| PCI Express 5.0 | 1 (x16) |
| PCI Express x1 | 2 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Format | ATX |
