Placa video Asus Phoenix Radeon RX 550 4GB GDDR5 Graphics Engine AMD Radeon RX 550 Bus Standard PCI Express 3.0 OpenGL OpenGL®4.5 Video Memory GDDR5 4GB Engine Clock 1183 MHz Stream Processors 512 Memory Speed 6000 MHz Memory Interface 128-bit Resolution Digital Max Resolution:5120x2880 Interface DVI Output : Yes x 1 (Native) (DVI-D) HDMI Output : Yes x 1 (Native) (HDMI 2.0b) Display Port : Yes x 1 (Native) (DisplayPort 1.4) HDCP Support : Yes (2.2) Maximum Display Support 3 NVlink/ Crossfire Support No Recommended PSU 350W Accessories 1 x Speedsetup manual Software ASUS GPU Tweak II & Driver, please download all software from the support site. Dimensions 7.6 " x 4.5 " x 1.5 " Inch 19.2 x 11.5 x 3.9 Centimeter Slot 2 slot https://www.asus.com/Graphics-Cards/PH-RX550-4G-EVO/specifications/
Alte caracteristici
| Alimentare separata | Nu necesita alimentare separata |
| Dimensiuni | 192 x 115 x 39 mm |
| HDCP Ready | Da |
| RAMDAC | 400 MHz |
| Suport FreeSync | Da |
| Suport Vulkan | Da |
| Tehnologii | AMD Virtual Super Resolution (VSR) acceleration AMD Free-Sync Technology AMD XDMA CrossFire Technology AMD Cutting-edge integrated display support |
| Versiune DirectX | 12.1 |
| Versiune OpenGL | 4.5 |
Conectori

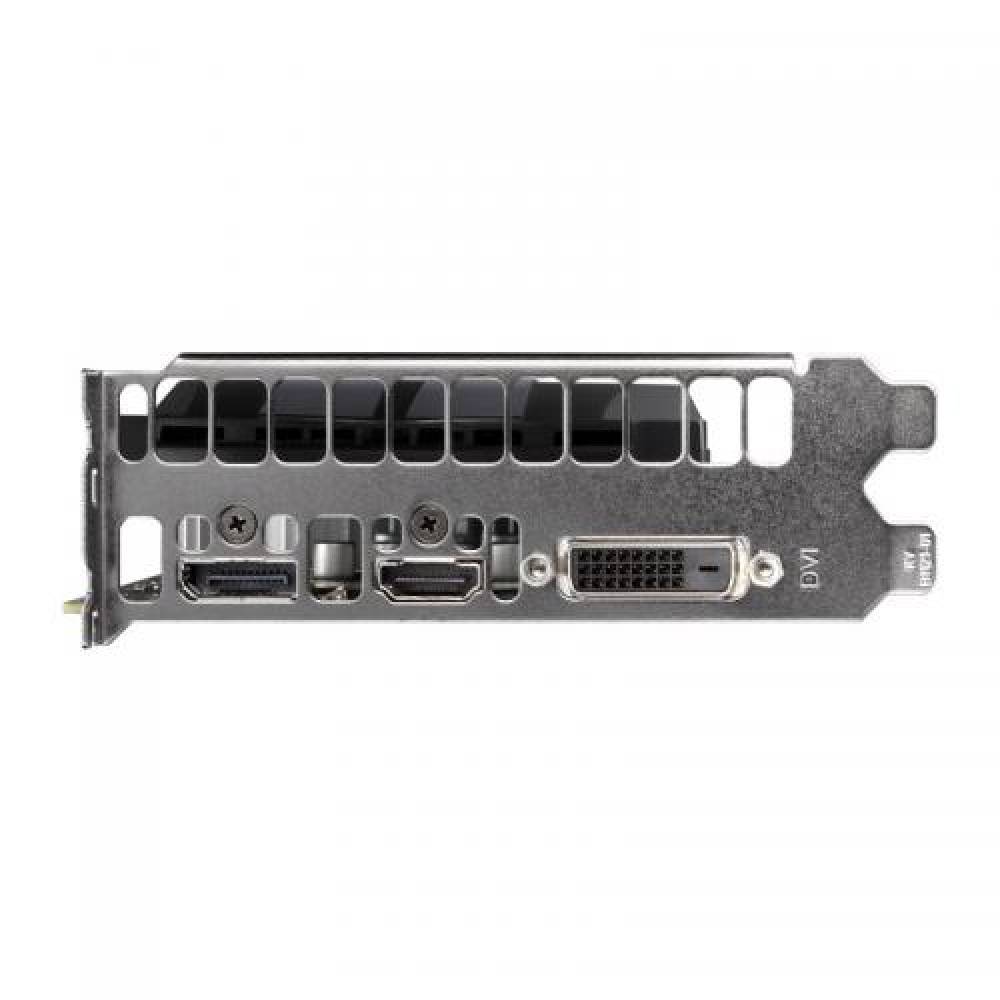

| Display Port | 1 |
| DVI | 1 |
| HDMI | 1 |
General
| Bridgeless Multi GPU | Da |
| Interfata grafica | PCI Express x16 3.0 |
| Model | Radeon RX 550 |
| Producator chipset grafic | AMD |
| Recomandat Gaming | Da |
| Rezolutie maxima suportata | 5120 x 2880 pixeli |
| Serie | Radeon RX 500 |
| Suport CrossFireX | Da |
Memorie
| Bus memorie | 128 bit |
| Capacitate memorie | 4 GB |
| Frecventa memorie | 6000 MHz |
| Tip memorie | GDDR5 |
Procesor
| GPU Boost clock | 1183 MHz |
| Numar tranzistoare | 6200 milioane |
| Pixel Fill Rate | 17136 MPixels/sec |
| Procesoare Stream | 512 |
| Raster Operators | 16 |
| Serie Procesor grafic | Lexa Pro |
| Tehnologie | 14 nm |
| Texture Fill Rate | 59976 MTexels/sec |
| Texture Units | 32 |
| Versiune Pixel Shader | 5.0 |
| Versiune Vertex Shader | 5.0 |
Sistem racire
| Dimensiune racire | Dual slot |
| Sistem de racire | Activ |
| Tip racire | Aer |
