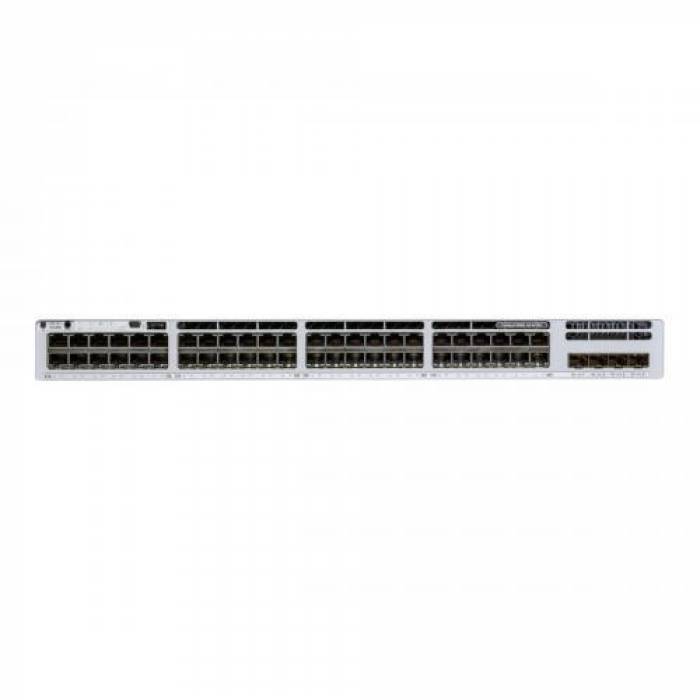

Catalyst 9300L 48p data, Network Essentials ,4x10G Uplink C9300L-48T-4X-E
Caracteristici generale
| Alimentare | Interna 350W, 100 - 240 VAC, 50/60 Hz |
| Buffer | 16 MB |
| Dimensiuni | 444.5 x 43.9 x 408.9 mm |
| Disipare caldura | Ventilatoare |
| Greutate | 7 kg |
| Layer | Layer 3 |
| Management | Da |
| Memorie | 8 GB |
| Memorie Flash | 16 GB |
| Metoda forwarding | 130.95 Mpps |
| Montare in rack | Da, 1U |
| Numar Porturi | 48x RJ45 4x SFP (uplink) |
| Protocoale de rutare | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Routing/Switch capacity | 176 Gbps |
| Rutare IP | IPv4: 32000 IPv6: 16000 |
| Stackable | Da |
| Standarde | IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s IEEE 802.3bz |
| Tabela de adrese MAC | 32K |
| Tehnologie de cablare | 1000BASE-T |
| Tip Switch | Retea RJ45 |
| Viteza Transfer LAN | 10/100/1000Mbps |
| VLANs | 4094 |
