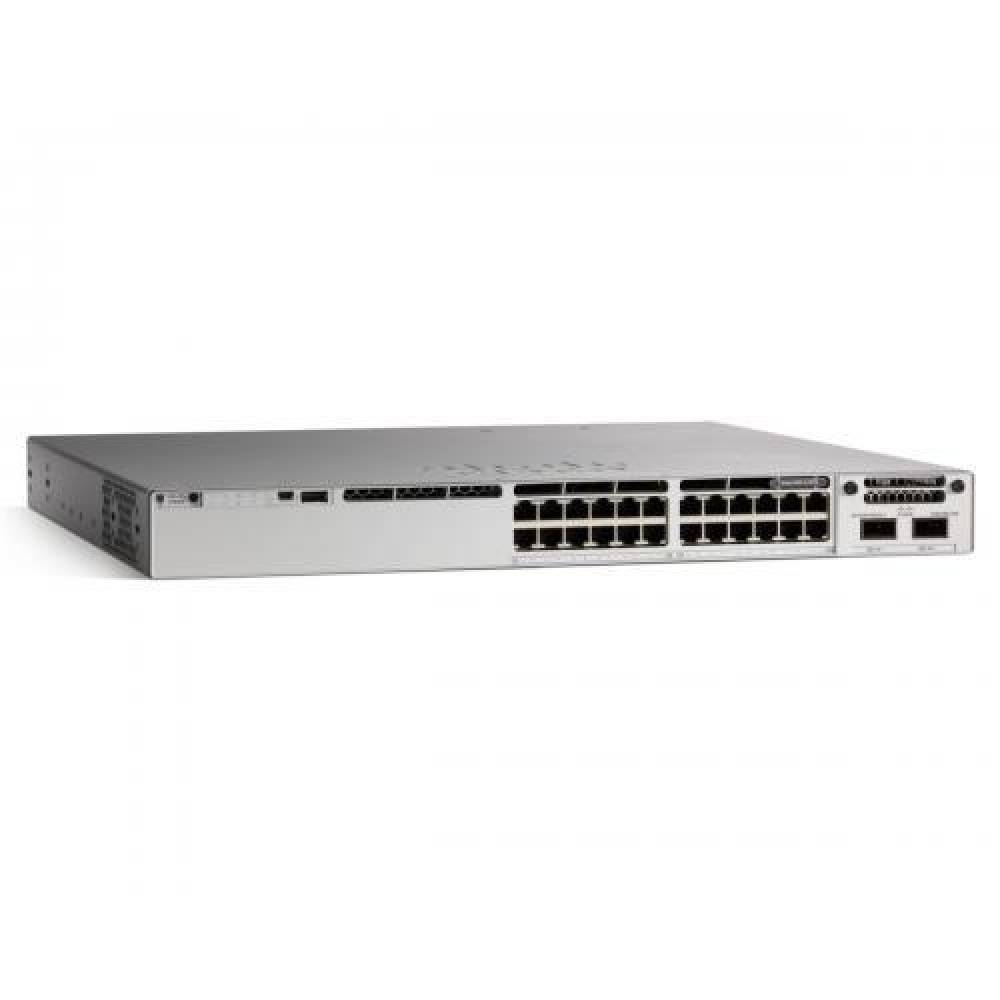

Catalyst 9300 24-port mGig and UPOE, Network Advantage C9300-24UX-A
Caracteristici generale
| Alimentare | Interna 1100W, 100 - 230 VAC, 50/60 Hz |
| Conectivitate | 1 x USB 2.0 |
| Dimensiuni | 470 x 44 x 445 mm |
| Greutate | 8.25 kg |
| Layer | Layer 3 |
| LED Indicators | Status |
| Management | Da |
| Memorie | 8 GB |
| Memorie Flash | 16 GB |
| Metoda forwarding | 154.76 Mpps |
| Montare in rack | Da, 1U |
| Numar Porturi | 24x mGig |
| PoE | UPoE |
| PoE Budget | 490 W |
| Protocoale de rutare | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Routing/Switch capacity | 640 Gbps |
| Rutare IP | IPv4: 32000 IPv6: 16000 |
| Securitate | 128-bit AES |
| Stackable | Da |
| Standarde | IEEE 802.3 IEEE 802.3u IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3af IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s IEEE 802.3at |
| Tabela de adrese MAC | 32K |
| Tehnologie de cablare | 10GBASE-T |
| Tip Switch | Retea RJ45 |
| Viteza Transfer LAN | 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps |
| VLANs | 4000 |
