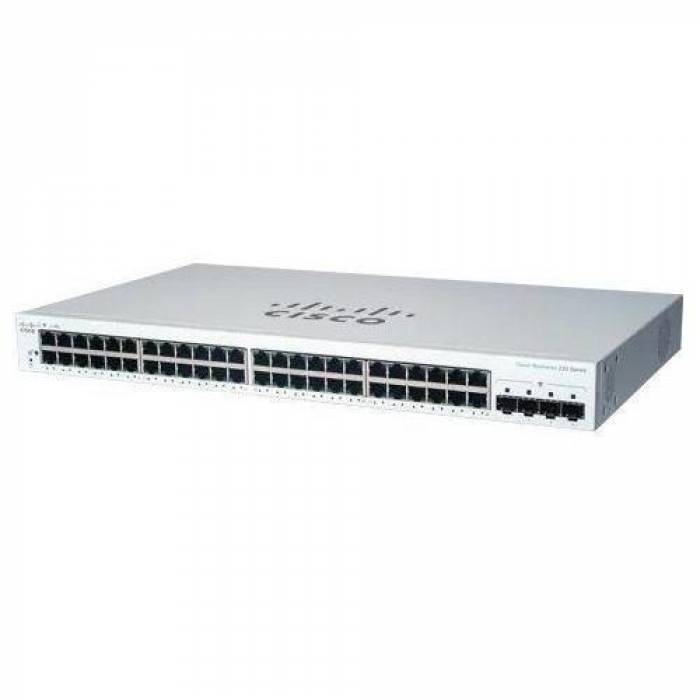

CBS220 SMART 48-PORT GE 4X10G/SFP+
Caracteristici generale
| Alimentare | 100-240 V, 50-60 Hz |
| Dimensiuni | 440 x 257 x 44 mm |
| Greutate | 3.54 kg |
| LED Indicators | System, Link/Act, Speed |
| Management | Da |
| Memorie Buffer | 16Mb |
| Metoda forwarding | 130.94 Mpps |
| Nivel zgomot | 35 dB |
| Numar Porturi | 48x RJ-45 4x SFP+ |
| Putere consumata (W) | 41W |
| Routing/Switch capacity | 176 Gbps |
| Standarde | EEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, Request for Comments (RFC) 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1350, RFC 1533, RFC 1541, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1493, RFC 1215, RFC 3416 |
| Tabela de adrese MAC | 8k |
| Tip Switch | Retea RJ45 |
| Viteza Transfer LAN | 48x 10/100/1000 Mbps 4x 10Gbps |
