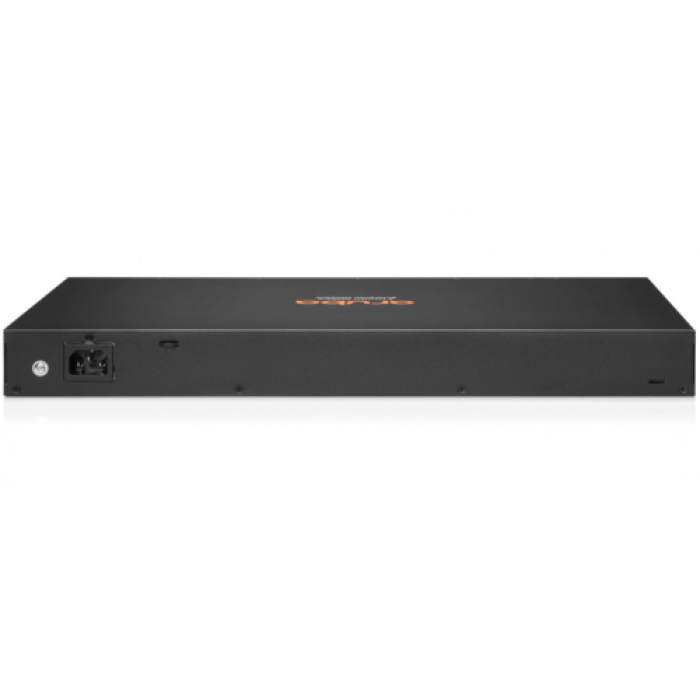

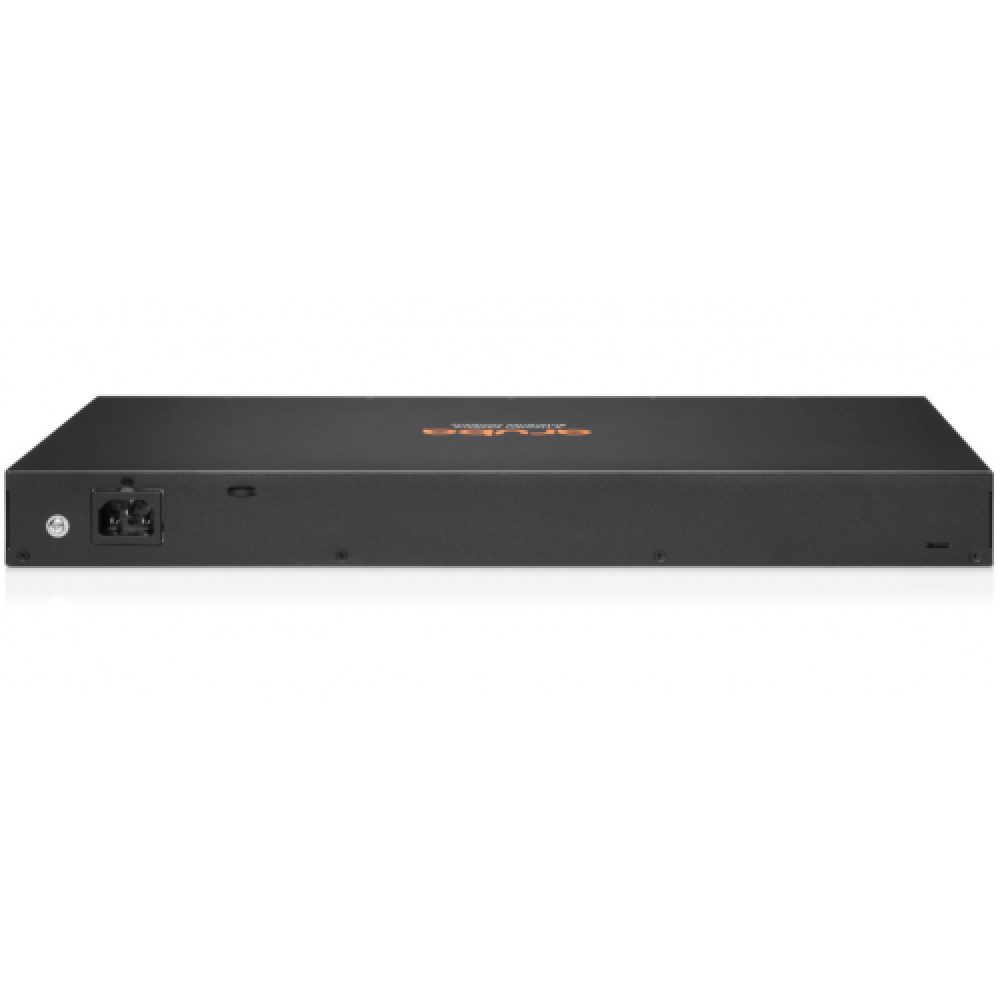

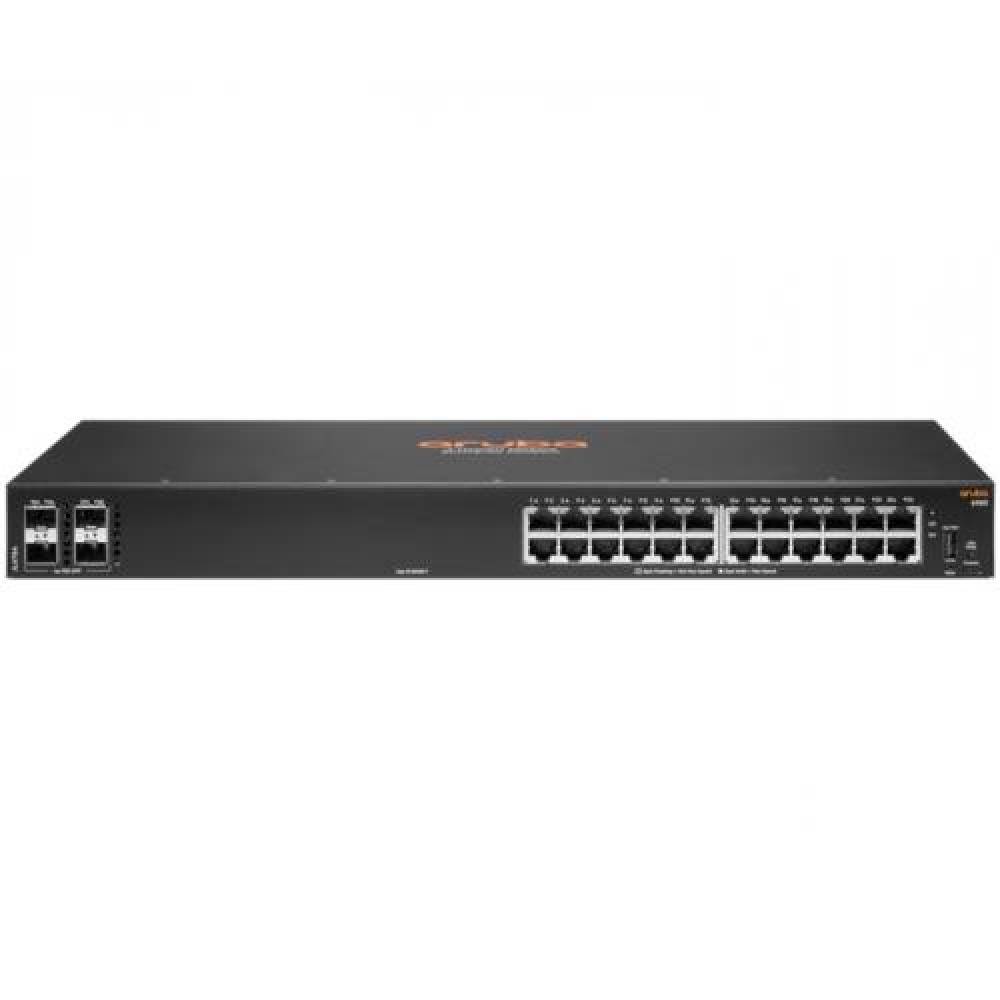

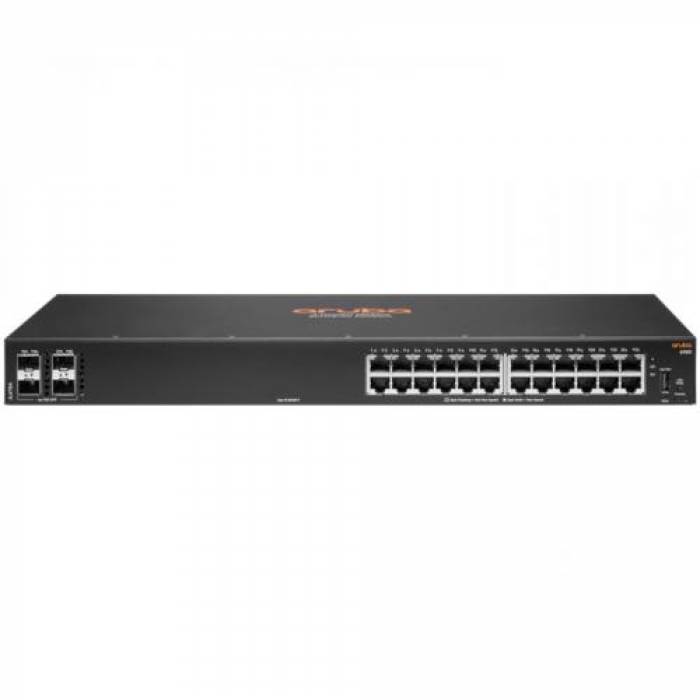

ARUBA 6100 24G 4SFP+ SWCH JL678A
Caracteristici generale
| Alimentare | 120 - 230 VAC (50/60 Hz) |
| Capacitate de rutare | 128 Gbps |
| Caracteristici speciale | Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Mld Snooping, Lacp Support, Lldp Support, Port Based Access Control, Dhcp Client, Energy Efficient Ethernet, Management Information Base (mib), Network Access Control (nac), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Entitymib, Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing |
| Conectivitate | 1x USB-C Console Port 1x USB Type-A Host port |
| Dimensiuni | 442 x 2601.2 x 43.9 mm |
| Greutate | 2.62 kg |
| Management | Da |
| Memorie | 4 GB DDR3 |
| Memorie Buffer | 12.38 MB |
| Memorie Flash | 16 GB eMMC |
| Montare in rack | Da, 1U |
| Nivel zgomot | 20.9 dB |
| Numar Porturi | 24x RJ45 4x SFP+ |
| PoE | Nu |
| Procesor | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Protocoale de rutare | IGMPv2, IGMPv3 |
| Putere consumata (W) | 33 W |
| Standarde | IEEE 802.3, IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (lacp), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az |
| Tabela de adrese MAC | 8192 |
| Tehnologie de cablare | 1000BASE-T 10GBase-X |
| Tip Switch | Retea RJ45 |
| Viteza Transfer LAN | 10/100/1000Mbps |
